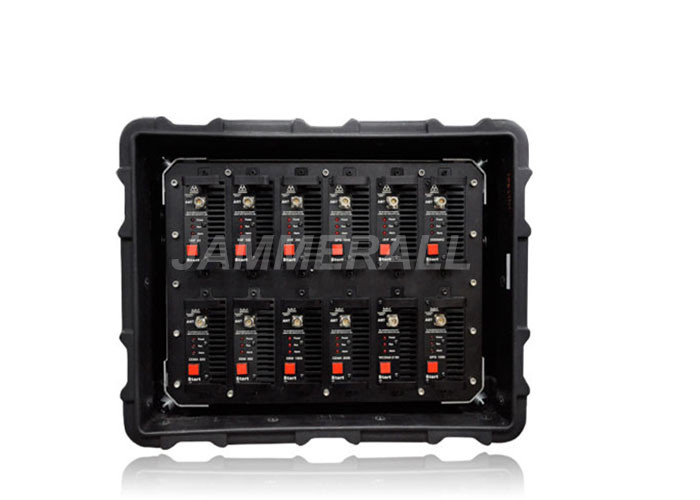

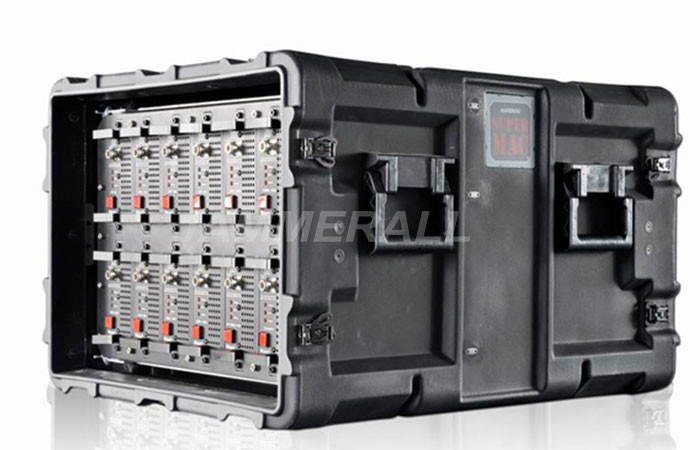

868W High Power Signal Jammer , Fully Integrated Broad Band Jamming System

868W High Power Signal Jammer , Fully Integrated Broad Band Jamming System

    • 868W High Power Signal Jammer , Fully Integrated Broad Band Jamming System
    • 868W High Power Signal Jammer , Fully Integrated Broad Band Jamming System
  • 868W High Power Signal Jammer , Fully Integrated Broad Band Jamming System

    Product Details:

    Place of Origin: China
    Brand Name: JAMMERALL
    Certification: ROHS/FCC/ISO 9000
    Model Number: JM110842

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiable
    Packaging Details: Carton with Netural Packing
    Delivery Time: 1-3 Working Days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal,L/C
    Supply Ability: 5000pcs per month
    Contact Now
    Detailed Product Description
    Antenna Type: High Gain Omnidirectional Antennas Total RF Power: 868 Watt
    Power Supply Source: Additional AC Generator ( 5000W) Total Power Consumption ( +28VDC ): Max 7000VA
    Operating Temperature Range: -20Ċ...+50Ċ Total System Weight: Approx.180kg

    868W High Power Signal Jammer Fully Integrated Broad Band Jamming System





    Specification



    RF Frequency Band ( MHz )

    RF Output Power( Watt )

    - 20-30MHz/Radio Control Toys, Analog phones&Alarms/45W

    - 30-50MHz/Radio Control Toys, Analog phones&Alarms/45W

    - 135-175MHz/Walky-talky ( VHF )/55W

    - 310-350MHz/Walky-talky ( UHF300 )/55W

    - 400-480MHz/Walky-talky ( UHF 350 )/55W

    - 800-850MHz/Walky-Talky(UHF700/800), TETRA/100W

    - 850-895MHz/Cellular CDMA/TDMA,alky-Talky ( UHF800/900 )/120W

    - 925-960MHz/Cellular GSM900/120W

    - 1520-1580MHz/GPS & Satellite; Thuraya; Iridium; Odyssey; GlobalStar; Inmarsat; Aces; Elipso/45W

    - 1805-1990MHz/Cellular HGSM1800/ DCS,Cellular GSM1900/ PCS (+ PHS )/100W

    - 2110-2170MHz/Cellular UMTS / WCDMA ( 3G )/100W

    - 2400-2500MHz/WLAN & Bluetooth & Wifi/28W

    Power Supply Source Additional AC Generator ( 5000W)
    Antenna Type High Gain Omnidirectional Antennas
    Total RF Power 868 Watt
    Total Power Consumption ( +28VDC ) Max 7000VA
    Operating Temperature Range -20Ċ...+50Ċ
    Operating Humidity Up to 80%
    Total System Weight Approx.180kg



    Accessories



    • High Power Signal Jammer
    • Power cable
    • Antennas
