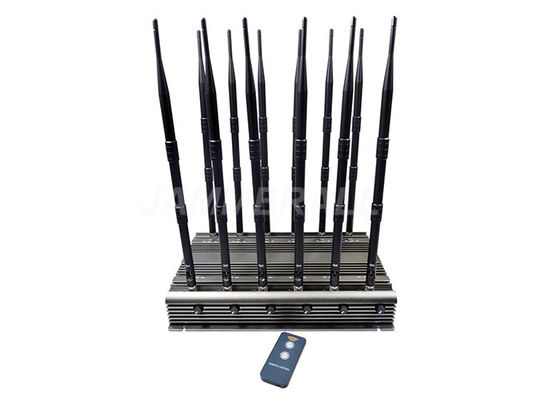

Adjustable 12 Antennas UHF VHF Jammer Blocking All Cellphone WIFI LOJACK Signal
Product Description
Suitable for: Police and Meeting Room, Security Services, Military Units,Prisons, Banks, Churches, Conference Rooms, Classrooms, Secret Services, News Conference Rooms, Libraries, Museums, Customs, Houses, Car.
Basic Specifications
| Jam Radius | 20-60meters |
| Cooling System | High efficiency aluminum alloy radiator, Build-in 5 cooling fan |
| Jam Signal Type | Full Bands Mobile Phone 4G/3G/2G+WiFi(2.4G,5.8G)+Lojack/UHF/VHF |
| Power Supply | AC110-240V to DC24V |
| Output Power | Total 65-71W,4-8W each band |
| Working Time | Not-stop Working |
| Product Size | 355x 238x 60mm(not Include Antenna) |
| Product Weight | appr.5.0kg |
Advantages
Build-in AC110-240V to 24V adapter,Safe and easily use
2-5meters with Infrared Remote Control Turn ON /OFF Power
Can adjust or turn off any single band without influencing the other bands operation
Built-in good cooling system inside 5 fans, Working non-stopped
12 chancel design, 4-8 watt each band
High output power, Total up to: 70W, jamming up to 60m (Still depends on the strength signal in given area)
External high gain 3-5dbiOmni-directional antennas all the TX frequency covered down link only
Independent module designwith frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer)
Key technical specifications
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA | 851-894MHz | 39dBm/8W |
| 2 | GSM | 925-960MHz | 39dBm/8W |
| 3 | DCS or PCS | 1805-1880 or 1920-1990MHz | 37.8dBm/6W |
| 4 | 3G | 2110-2170MHz | 37.8dBm/6W |
| 5 | 4G1 LTE | 700-803 or 790-862MHz | 39dBm/8W |
| 6 | 4G LTE1700 | 1700-1800MHz | 37.8dBm/6W |
| 7 | 4G Wimax | 2500-2690 or 2300-2400MHz | 37dBm/5W |
| 8 | WIFI2.4G | 2400-2500MHz | 37dBm/5W |
| 9 | WIFI5.8G | 5725-5850MHz | 36dBm/4W |
| 10 | LOJACK | 167-175MHz | 37dBm/5W |
| 11 | VHF | 135-174MHz | 37dBm/5W |
| 12 | UHF | 400-470MHz | 37dBm/5W |
| Power supply: Build-in AC adapter 50 to 60Hz, (AC110-240V IN,DC24V working) | |||
| Dimensions: (length ,width, height) 355x 238x 60mm(not Include Antenna) | |||
| Packing size: 47x42x11.5cm Net weight: 5kg Gross weight: 5.5kg | |||
| Total power:71W Shielding radius: (20-60) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters |
|||
Package Content
