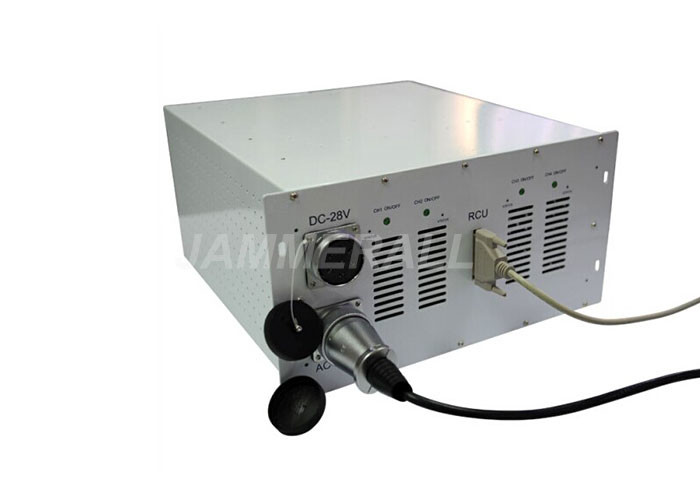

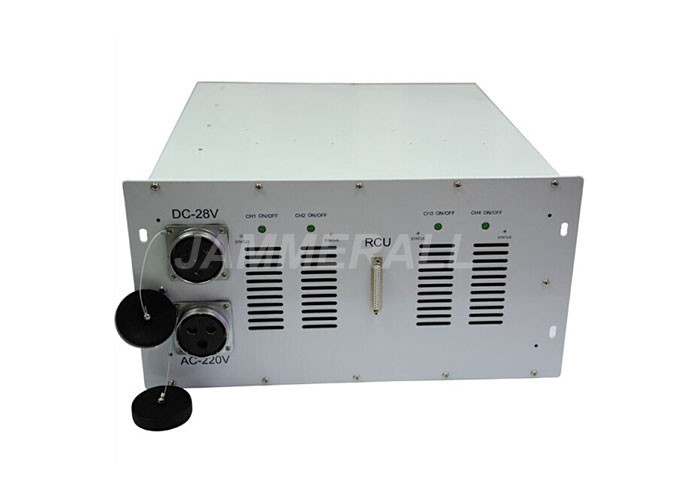

Digital VIP Protection High Power Digital Bomb Jammer with Remote and Monitoring
Product Description
This high power digital VIP protection bomb jammer is designed with high input voltage and low voltage protection and VSWR protection against antenna miss-match including open and short circuit. Also this high power remote controlled VIP protection bomb signal blocker owns the over Heat protection - thermal protector and over current protection design as well. What’s more, the remote control and monitoring, output power LCD Indication, output power adjusting per Band and Bandwidth adjusting within Band by LCD and output power ON/OFF per band design have also been applied on this VIP protection bomb jammer as well. Also the state-of-art technology for maximum performance and jamming the signals transmits to activate bombs has also been used on this VIP protection bomb jammer as well.
Technique specifications
RF Characteristics |
Output Power: 400 watts Range Jamming: 50-200m at standard environment Internal Modulation: Direct Digital Synthesis Power Supply: 220VAC/24VDC/300A Sweep rate: Fixed Operating hours: 24 hours |
| Power Amplifier Protectors |
Over Heat protection - thermal protector. Over current protection. High input voltage and low voltage protection. VSWR protection against antenna miss-match including open and short circuit |

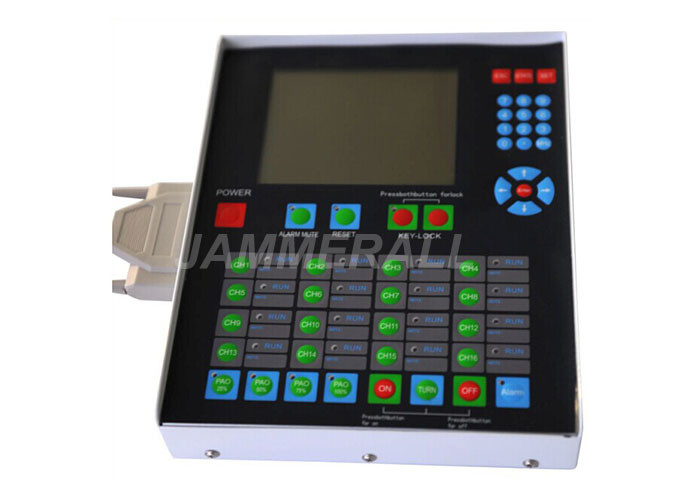

| Remote Control and Monitoring |
Output power LCD Indication. Output power adjusting per Band and Bandwidth adjusting within Band by LCD. Output power ON/OFF per band. |
| Antenna: External Broadband Omni-Directional Antenna | Frequency Gain Handling Power VSWR 20 - 100 MHz 6 dBi 500 watts <3:1 100 - 500 MHz 6 dBi 500 watts < 2:1 500 - 750 MHz 3 dBi 500 watts < 2:1 750 - 1000 Mhz 6 dBi 500 watts < 2:1 |
| Jamming Frequency Range |
Frequency Band: 20 to 1000 MHz (You can select 4 bands at most from the above frequency bands) |
| Environment of Operation |
Operating Temp.: -10°c to +70°c Humidity: 0% - 90% |
| Physical Data |
Dimensions: 482*400*255mm Weight: 35kgs |
Accessories
