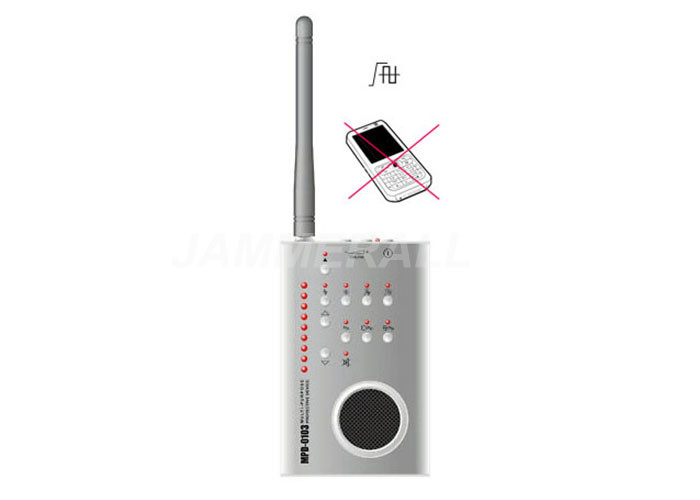

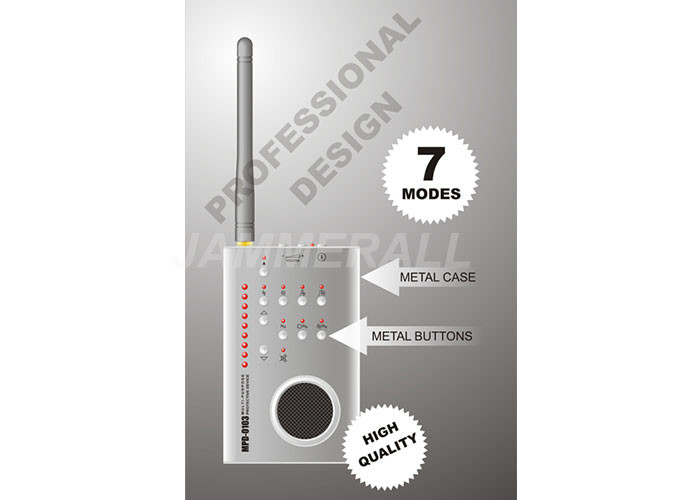

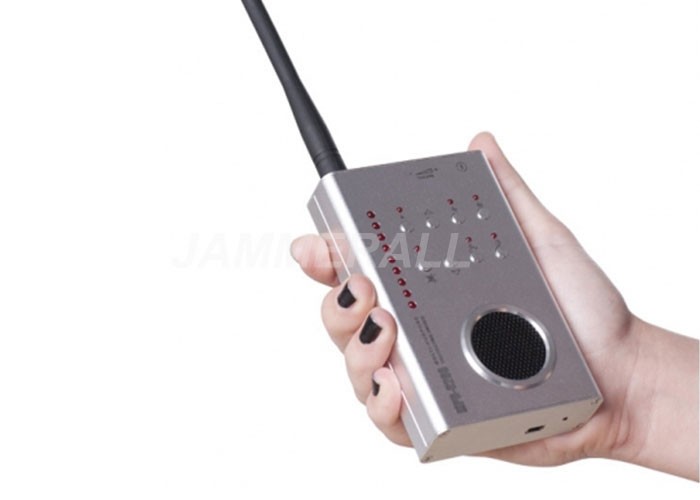

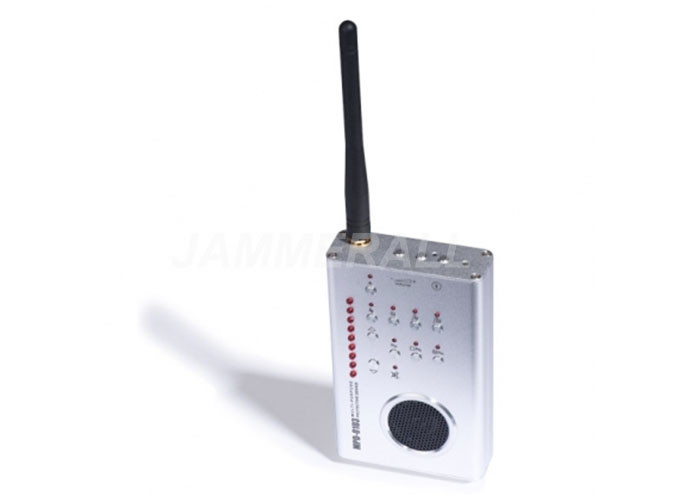

Handheld RF Bug Detector Radio Frequency Detector / Bug Detector
The RF bug detector is an amazing unit as combination of quality, functionality and convenience. It is not just a great option for individual privacy protection, and also suits for tasks such as anti-spy against unauthorized tapping by competitors or intelligence services, office, conference room etc. In occasions such as a serious meeting or negotiation, it will be necessary to do a thorough sweeping of the location so that to ensure the most confidentiality.
The detectors would work well for the situation with uniquely functionality design. It comes with multiple working modes for varied occasions. Analog detector mode to locate RF radiation source; digital detecting mode GSM and low speed RF detection with digital modulation; analog detector waiting mode and digital detector waiting mode respectively the adjacent area from the presence of analog portable or remotely activated hidden listening radio devices; and also white noise generator mode as well. Covering a wide frequency range and power detection capability, the gadget won’t fail you any time.
By functionality and convenience this device doesn't have analogs worldwide.
It can become irreplaceable assistant for people who wants to be safe from unauthorized tapping by competitors and intelligence services in car, office and home.
Do you want to know when your mobile phone transforms from your friend to your enemy and when someone listening you from its help?
Do you want to intervene to intruder to know your conversation by mobile phone?
Do you want to know did peacefully looking visitor bring listening device to your office?
Do you want to know does anyone eavesdrop on your business meeting with your co-workers?
You can get replies for all these questions concerned your information security using Bug Detector Radio Frequency Detector.
The Bug Detector Radio Frequency Detector combines several most popular devices widely used for information protection. Implementation of state-of-the-art components and microprocessor control allowed us to create a functionally complete and reliable device to satisfy needs of our customers. JM163901 has seven built-in modes and functions switched on by means of separate pushbuttons and indicated by respective LEDs:
- Analog Detector mode;
This mode is used for detecting and locating sources of radio-frequency radiation. Near the source of radio-frequency radiation the LEDs begin to light in sequence, and the JM163901 loudspeaker emits stepwise rising tone.
- Digital Detector mode;
It becomes practically irresponsive to the stationary analog signals. In this mode the field detector responds to radio-frequency signals with the digital modulation, mostly of the GSM standard and other low-speed data transfer protocols. This mode does not ensure guaranteed detection of the radio-frequency radiation sources with high-speed data transfer protocols or can only provide it for conditions of the complete radio silence and the low level of external background interference.
- Analog Detector Waiting mode (triggered on a radio-frequency analog signal exceeding specified level, with a melody being played);
It is designed to protect the adjacent area from the presence of analog portable or remotely activated hidden listening radio devices. It responds to exceeding the preset threshold level, with a melody being played.
- Digital Detector Waiting mode (triggered on a radio-frequency digital signal exceeding specified level, with a melody being played);
It is designed to protect the near-field region against insertion of digital portable or remote-activated hidden listening radio devices, as well as the GSM hidden listening radio devices. It responds to crossing of the preset threshold level, with a melody being played.
- White Noise Generator mode;
The noise spectral density can be displaced in either direction.
- White Noise Generator mode on a Microphone Signal;
It responds to crossing of the preset threshold level of acoustic voice signal.
- White Noise Generator mode on a Digital Detector Signal (triggered on a radio-frequency digital signal exceeding specified level, with a White Noise generating);
It is designed for protection against unauthorized activation of mobile phones when used as tapping (eavesdropping) devices. It responds to exceeding the preset threshold level of the mobile phone radiation. When the threshold is exceeded it generates the acoustic white noise to suppress the microphone section of the protected mobile terminal placed close by.
|Detectable frequency range||50 - 3000 MHz|
|Input signal intensity range||from -58 dBV to -13dBV|
|Dynamic range of detector||45 dB|
|Battery capacity||1800 mA*h|
|Battery charging time||5 - 8 hrs|
|Working time in Detection mode - at low sound level or w/o sound||up to 10 hrs|
|Size of device w/o antenna||110mm|
|Size of device w/ antenna||215mm|
|Current consumption in Detection mode|
|at low sound level||from 30 mA|
|at medium sound level||from 120 mA|
|Current consumption in White Noise Generator mode|
|at low sound level||from 50 mA|
|at medium sound level||from 130 mA|
|at maximum sound level||~ 330 mA|
