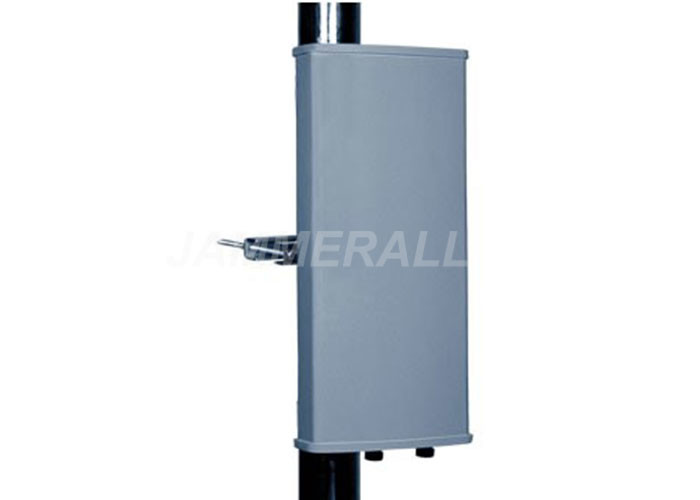

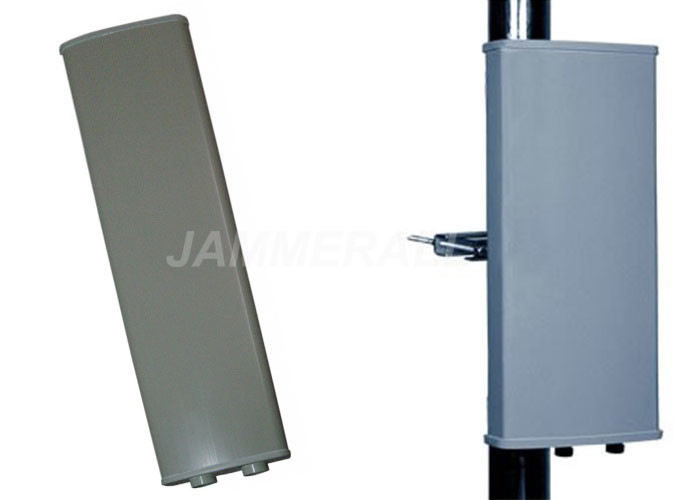

3PCS Directional Panel Antenna for 320W High Power Signal Jammer Accessories
Product Description
This product is design for 320W High Power Signal Jammer Multi Band Jammer with Waterproof design (JM110841) and gives you more convenience once the antenna of the product is broken. So if you want to own a set of spare antenna for your product, you can just come and pick up this one.
Specification
Frequency Range | - CDMA800,850-894MHz - GSM900,925-960MHz - GSM1800 & PCS1900,1805-1990MHz - 3G,WCDMA,2110-2170MHz - WIFI,2400-2485MHz - GPS,1520-1580MHz |
Maximum Power | 500(W) |
HPBW(3dB) |
-65°H-plane ,30°E-plane -65°H-plane ,13°E-plane |
F/B |
25(dB) |
Input Impedance | 50(Ω) |
Gain | 12(dBi),15(dBi) |
VSWR | <1.5 |
PIM | <-107(dBm) |
Polarization | Vertical Polarization |
Connector Type | N-K |
Lighting Protection | Direct Ground |
Wind Velocity | 200(km/h) |
Hold Pole Diameter | Φ50-Φ114(mm) |
Height/Width/Depth | 1250/280/80(mm) |
