DCS1800 Cell Phone Signal Booster / Amplifier High Performance For Home
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Certification: ROHS/FCC/ISO 9000
Model Number: JM110868
High Light:

signal jammer spare parts


signal jammer components

Payment & Shipping Terms
Packaging Details: Carton with Netural Packing
Delivery Time: 1-2 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal,L/C
Supply Ability: 5000PCS/Month
Power Supply: AC110~220V±10% 45~55Hz
Frequency: -Up Link DCS 1710-1785(MHz) -Downlink 1805-1880(MHz)
Coverage: Up To 1000m²
Reliabiity: To Zhe GB6993-86 Standard
Color: Grey
Dimensions: Signal Booster 158 X 136 X 37 Mm (L X W X D)
Product Description

DCS1800 Cell Phone Signal Booster signal amplifier device for home



Product Description


A cell phone booster is a device, which use to amplify the lower signal strength to full and high signal strength in a weak area. With nowadays advanced technology, the amplify range can be reach 1000 square meters. And this device is used for amplify the signal for DCS1800 signals. More detailed information, please refer to the product specifications and features.

This device is for DCS1800 signals only. Please check frequency your country uses before purchasing.



Frequency range

- Up link DCS 1710-1785(MHz)

- Downlink 1805-1880(MHz)

Coverage Up to 1000 (Distance will be reduced when obstacles are in the way i.e. surrounding walls)

- DCS Up link 53

- DCS Downlink 58

Pass band ripple: DCS 15 dB
Gain adjustable range MGC≥30dB
I/0 return loss ≤- 10 dB
I/0 impedance 50V/N Connector
Intermodulation attenuation(Po=13dBm)


Transmission Delay ≤0.5us
Noise igure ≤- 8 dB
Guard band rejection -DCS (BW-58dB) ≤104MHz ,(BW-60dB) ≤107MHz
Power supply AC110~220V±10% 45~55Hz
Dimensions Signal Booster 158 x 136 x 37 mm (L x W x D)
Reliabiity To zhe GB6993-86 standard
Electromasnetic compatibility To zhe ETS300 694-4 standard
Color Grey



  • Signal Booster
  • Coaxial Cable 2M
  • Coaxial Cable 10M
  • Indoor Antenna
  • Outdoor Antenna
  • Power Adapter
  • Indoor Antenna Accessories and Screws


Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.


Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .

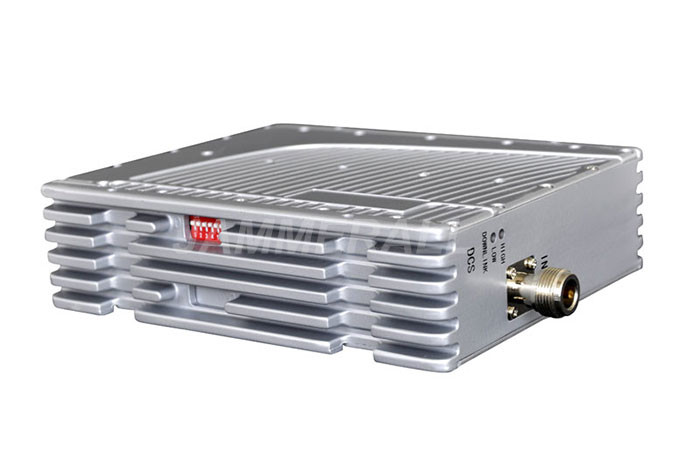

DCS1800 Cell Phone Signal Booster / Amplifier High Performance For Home 0

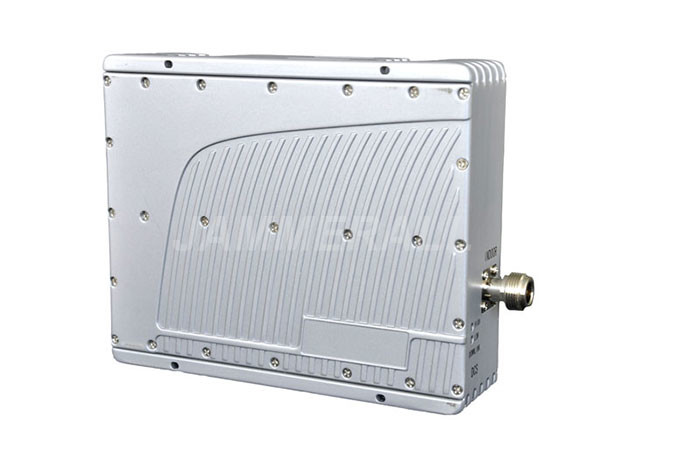

DCS1800 Cell Phone Signal Booster / Amplifier High Performance For Home 1
